Surface Inductive Modem (SIM), Inductive Modem Module (IMM), and Inductive Cable Coupler (ICC)
Configuration Details


Note: We do not publish prices on the website. Please contact us [seabird@seabird.com or (+1) 425-643-9866] for pricing.

Surface Inductive Modem (SIM)     Brochure/specifications

Part # Description Notes
SIM-COUPLED Surface Inductive Modem PC board (PN 40928) with RS-232/485 interface for use with Sea-Bird Inductive Cable Coupler (formerly SMODEM-1). Includes 3 m serial cable, PN 171887.
Communicating with 1 or more IM instruments (SBE 16plus-IM, 16plus-IM V2, 37-IM, 37-IMP, 37-IMP-IDO, 39-IM, 44, or UIMM) requires use of Surface Inductive Modem (SIM), which provides standard serial interface (RS-232 or RS-485) between user's computer & up to 100 IM-compatible instruments coupled to single cable. SIM is housed in buoy or on land.
Note: IMM can be used in place of SIM; see below.

 		 For typical cable-to-buoy applications, it is often preferable to connect jacketed mooring wire to buoy with length of chain, grounding jacketed wire to seawater at each end. Inductive Cable Coupler (ICC) connects SIM to jacketed wire above uppermost underwater inductive instrument & below point where wire is grounded. Order SIM-COUPLED & Inductive Cable Coupler (ICC); see ICC listing below.
For typical cable-to-shore applications, bottom end of wire is grounded to seawater, & top end remains insulated all way to connection to SIM. Second wire from SIM connects to seawater ground, completing circuit. Order SIM-DIRECT.
SIM-DIRECT Surface Inductive Modem PC board (PN 40870) with RS-232/485 interface for use with direct mooring wire termination to Surface Inductive Modem board (formerly SMODEM-2). Includes 3 m serial cable, PN 171887.



Inductive Modem Module (IMM)     Brochure/Specifications      Technical Reference Manual

Part # Description Notes
IMM Inductive Modem Module (IMM) Developers kit, includes PN 90554.1 RS-232 or logic level modem module, straight connectors. Includes inductive test coupler (801588), IMM-to-computer serial cable (801583), 9V battery (other connector orientations also available, consult factory)
Communicating with 1 or more IM instruments (SBE 16plus-IM, 16plus-IM V2, 37-IM, 37-IMP, 37-IMP-IDO, 39-IM, 44, or UIMM) requires use of Inductive Modem Module (IMM), which provides standard serial interface (RS-232) between user’s computer & up to 100 IM-compatible instruments coupled to single cable. IMM is housed in buoy or on land.
Note: SIM can be used in place of IMM; see above.




 For typical cable-to-buoy applications, it is often preferable to connect jacketed mooring wire to buoy with length of chain, grounding jacketed wire to seawater at each end. Inductive Cable Coupler (ICC) connects IMM to jacketed wire above uppermost underwater inductive instrument & below point where wire is grounded. Order IMM & Inductive Cable Coupler (ICC); see ICC listing below.

For typical cable-to-shore applications, bottom end of wire is grounded to seawater, & top end remains insulated all way to connection to IMM. Second wire from IMM connects to seawater ground, completing circuit. Order IMM with external transformer (41546 below).
41546 IMM adapter PCB for direct connection method between surface buoy and top of mooring cable (DN 41546). Specify full size or half size board. Provides external transformer for applications where bottom end of wire is grounded to seawater, & top end remains insulated all way to connection to IMM. Second wire from IMM connects to seawater ground, completing circuit (see drawing above).





Inductive Cable Coupler (ICC)     Brochure/Specifications

Part # Description Notes
ICC Inductive Cable Coupler Communicating with 1 or more IM instruments requires use of Surface Inductive Modem (SIM) or Inductive Modem Module (IMM), which provides standard serial interface (RS-232 or RS-485) between user's computer & up to 100 IM-compatible sensors coupled to single cable. An Inductive Cable Coupler (ICC) is always required if specifying SIM-COUPLED, & is often required if specifying an IMM.

Version 4a ICC is a 20-turn coupler, while Version 4b is a 100-turn coupler. Other couplers are available for OEM applications (contact Sea-Bird for ordering information). Table below summarizes power requirements for each:

  20-turn ICC
(Version 4a)		 100-turn ICC
(Version 4b)		 8-turn ICC
(OEM Version)
SIM 35 mA 20 mA Not allowed
IMM --
Low power transmit setting (1)		 Not allowed 1.2 mA Not allowed
IMM --
Full power transmit setting (1)		 12 mA 4 mA Not allowed
Underwater Inductive Modem
(UIM) (2)		 Not allowed Not allowed 15 mA

Notes:
(1) IMM power setting is set with SetEnableFullPwrTx= command.
(2) Underwater Inductive Modem is a component used by OEMs to integrate Sea-Bird's inductive modem technology with a third-party sensor.
ICC Version 4 (20-turn coil -- for use with SIM/IMM)

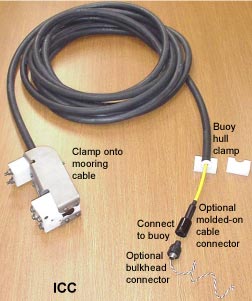

ICC4-1a Inductive Cable Coupler (Version 4, 20-turn) for 1/4 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)


ICC4-1a, -2a, -3a, -4a, -5a, -6a, -7a, -8a, -9a.
All with pigtail cable.


ICC with optional molded-on cable connector & matching bulkhead connector -- consult factory for availability
ICC4-2a Inductive Cable Coupler (Version 4, 20-turn) for 5/16 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-3a Inductive Cable Coupler (Version 4, 20-turn) for 3/8 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-4a Inductive Cable Coupler (Version 4, 20-turn) for 1/2 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-5a Inductive Cable Coupler (Version 4, 20-turn) for 6 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-6a Inductive Cable Coupler (Version 4, 20-turn) for 8 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-7a Inductive Cable Coupler (Version 4, 20-turn) for 10 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-8a Inductive Cable Coupler (Version 4, 20-turn) for 12 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-9a Inductive Cable Coupler (Version 4, 20-turn) for 16 mm (5/8 in.) diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
90449 Heavy duty titanium & plastic ICC for 38 mm (1.5 in.) wire (20-turn), including steel-reinforced conduit (specify length up to 5 m), fiber-reinforced hose-protected electrical cable (specify length up to 10 m), & low-profile penetrator for buoy hull See drawing 41252 for details for 90449.
ICC Version 4 (100-turn coil for use with IMM)
ICC4-1b Inductive Cable Coupler (Version 4, 100-turn) for 1/4 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)


ICC4-1b, -2b, -3b, -4b, -5b, -6b, -7b, -8b, -9b.
All with pigtail cable.


ICC with optional molded-on cable connector & matching bulkhead connector -- consult factory for availability


ICC4-2b Inductive Cable Coupler (Version 4, 100-turn) for 5/16 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-3b Inductive Cable Coupler (Version 4, 100-turn) for 3/8 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-4b Inductive Cable Coupler (Version 4, 100-turn) for 1/2 in. diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-5b Inductive Cable Coupler (Version 4, 100-turn) for 6 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-6b Inductive Cable Coupler (Version 4, 100-turn) for 8 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-7b Inductive Cable Coupler (Version 4, 100-turn) for 10 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-8b Inductive Cable Coupler (Version 4, 100-turn) for 12 mm diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
ICC4-9b Inductive Cable Coupler (Version 4, 100-turn) for 16 mm (5/8 in.) diameter mooring wire, with pigtail cable up to 10 m long (no connectors). Specify cable length. Includes reinforced cable conduit & buoy mounted conduit clamp. (Consult factory for connector availability)
90449.1 Heavy duty titanium & plastic ICC for 38 mm (1.5 in.) wire (100-turn), including steel-reinforced conduit (specify length up to 5 m), fiber-reinforced hose-protected electrical cable (specify length up to 10 m), & low-profile penetrator for buoy hull
ICC Other Versions for OEM Applications -- Consult factory



Product configuration options listing for all products

Additional cables, mount kits, and spares may be found at: Cables, Mount kits for Sea-Bird sensors, Mount kits for Third Party sensors, Spare parts
